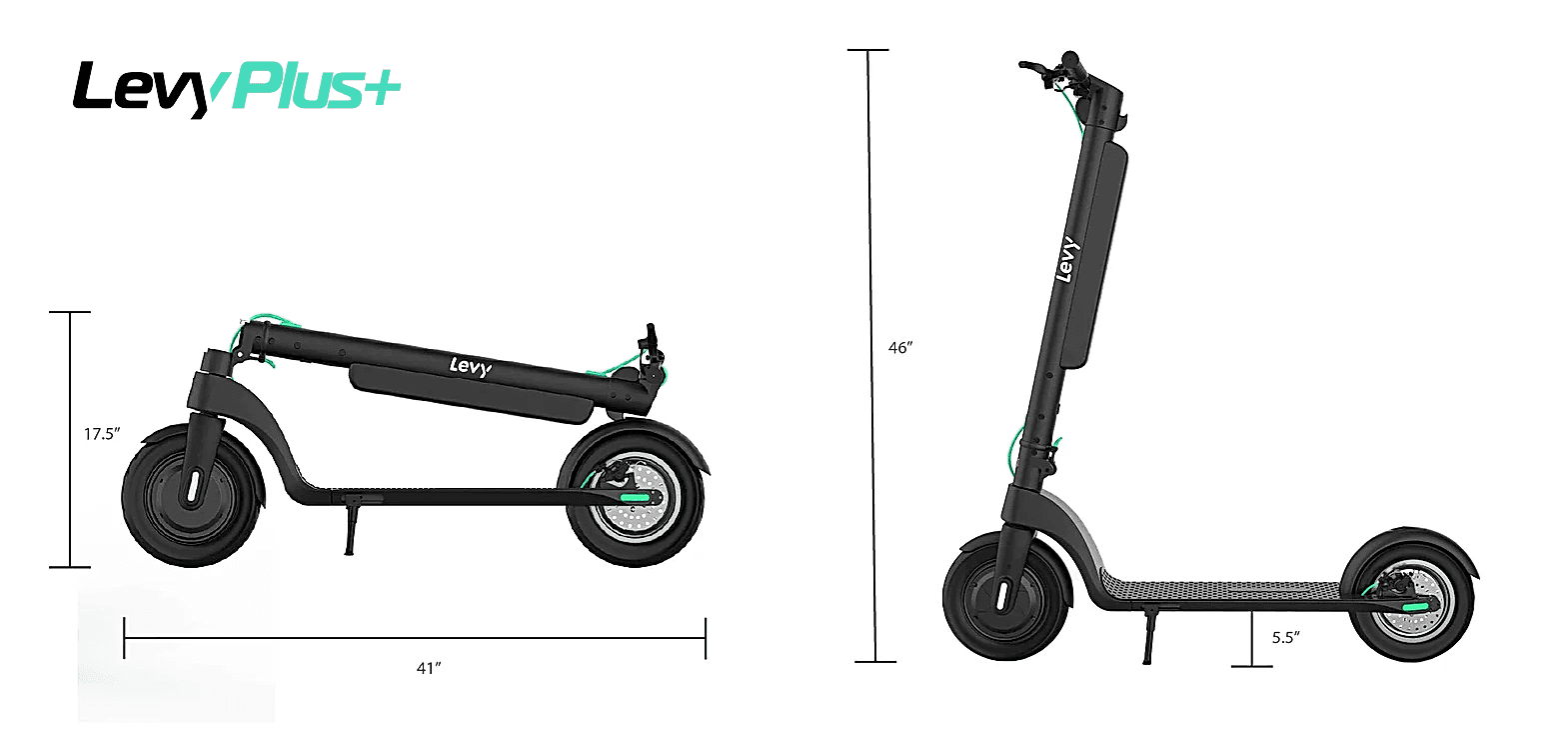

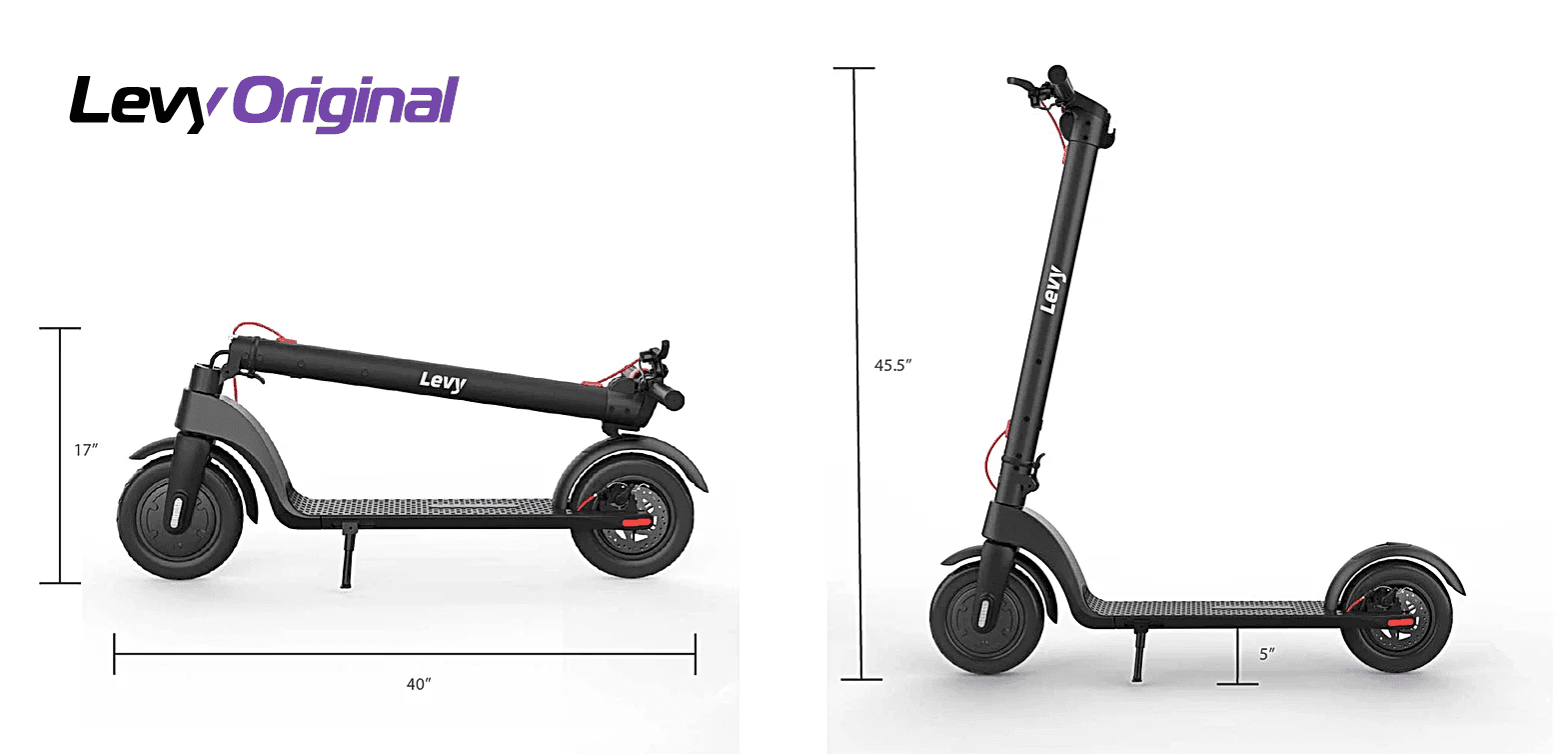

Specifications, Dimensions & Features
Specs | Levy | Levy Plus |
|---|---|---|
Stem / Tube | 2.2" Diameter | 2.2" Diameter (Partial Opening) |
Handlebar Width | 16.5" | 16.5" |
Battery Capacity | 36 V, 6.4aH (230 Watt-hours) | 36 V, 12.8aH (460 Watt-hours) |
Battery Size | 19" x 2" | 19" x 2" x 4" |
Battery weight | 3.3 lbs | 5.2 lbs |
Cell Type | 18650 Li-Ion | 18650 Li-Ion |
Charger | DC42V/2A | DC42V/2A |
Charging Time | 2.5 hours | 3.5 hours |
Driving Modes | 3 (Beginner, Eco, Sport) | 3 (Beginner, Eco, Sport) |
Floorboard Height | 5" | 5.5" |
Floorboard Standing Length | 18" | 18" |
Floorboard Width | 6" | 6" |
Frame Material | Aviation aluminum alloy | Aviation aluminum alloy |
Headlight | LED | LED |
Max Incline | 5 - 10% (Depending on rider weight) | 5 - 10% (Depending on rider weight) |
Max Load | 275 lbs | 275 lbs |
Max Range | 10 miles w/ Eco mode, | 20 miles w/ Eco mode |
Max Speed | 18 mph | 20 mph |
Motor Drive | Front wheel drive | Front wheel drive |
Motor Power (Maximum) | 700W | 700W |
Motor Power (Nominal) | 350W | 350W |
Net Weight | 27 lbs | 30 lbs |
Taillight | LED | LED |
Tire Size | 8.5" or 10" | 8.5" or 10" |
Waterproof Level | IP54 | IP55 |
Package Contents
Battery Pack
Tire Valve Extender (for Tubeless Tires)
5mm Hex Key for adjusting brake
Quick Start Guide
Charging Adapter
